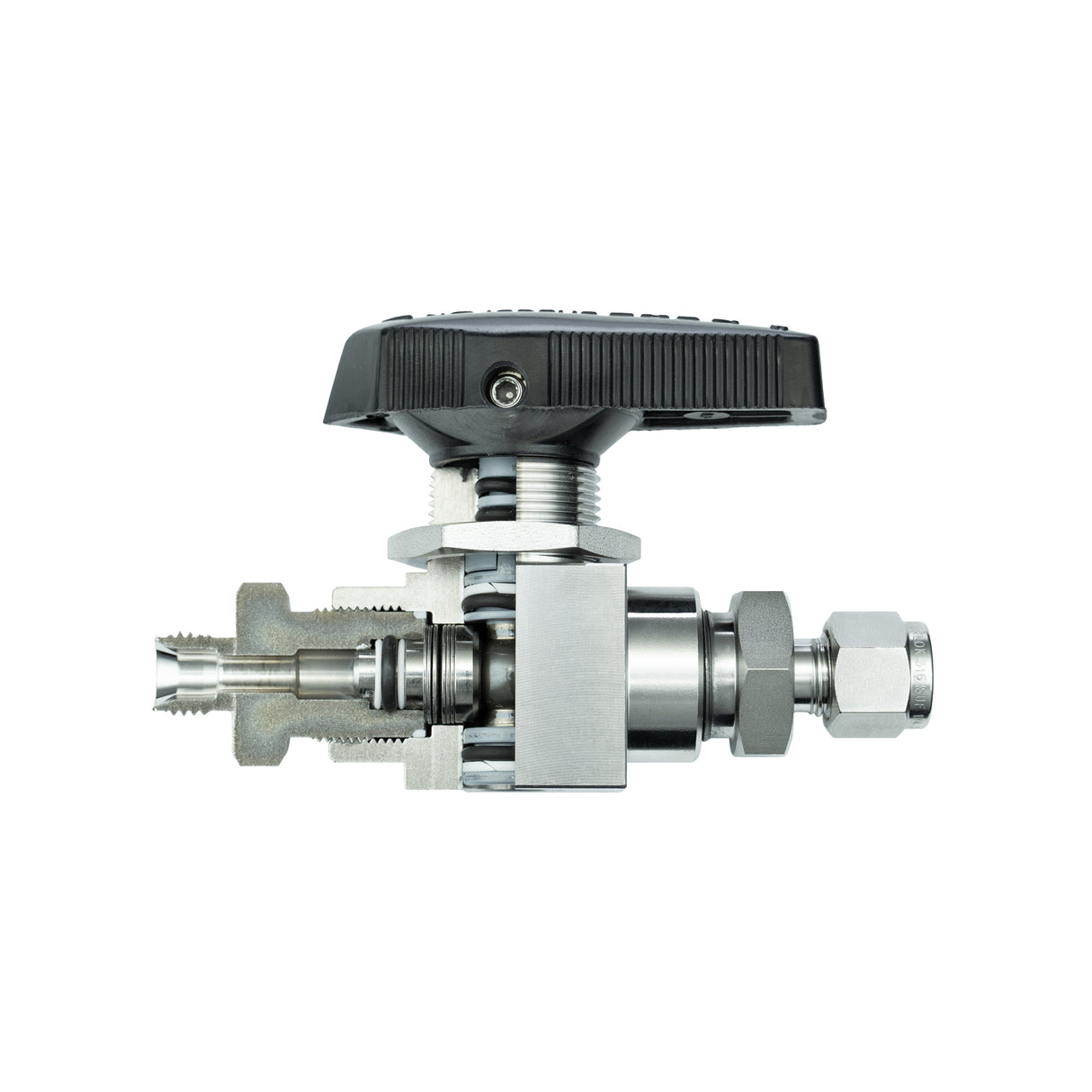

SBTH 2 Way Trunnion Ball Valve 210
SBTH 2 Way Trunnion Ball Valve 210 - BTH Series, 2 way trunnion ball valve, SS, 10000psi, PEEK seats, VITON seals, 1/4" tube ends is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Can't Find What You're Looking For? Contact Us Here
SBTH 2 Way Trunnion Ball Valve 210
Description
Description
BT Series
SUPERLOK High Pressure Ball Valves provide reliable shut-off or switching functions. The upper and lower trunnion bearings enhance the resistance of the trunnions against seizure, and increase the valve life in extreme applications. The compact and rugged design employs spring-loaded seats for high cycle life and low operating torques at pressures up to 10,000 psig (689 bar).
Features
- PEEK trunnion bearings for longer cycle life.
- Two-way and Three-way designs.
- Blow-out resistant two-piece ball/stem.
- Low operating torque.
- Panel mountable to 9.7mm thickness.
- Handle indicates direction of flow.
- Positive handle stops.
- 100% factory tested.
- Compact, maximum flow design.
Specifications
Specifications
-
CategoryValves
-
Sub-CategoryBall Valves
-
Product Type2-Way
-
Connection1/8″ to 1/2″ and 6mm to 12mm
-
MaterialStainless Steel
-
SeriesBT
-
Pressure Rating10,000 psig (689 bar) with PEEK Seats, 6,000 psig (414 bar) with PCTFE Seats
-
Temperature Rating0˚F to 450˚F, (-17˚C to 232˚C)
-
Data Sheet
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
SBTH 2 Way Trunnion Ball Valve 210
BT Series
SUPERLOK High Pressure Ball Valves provide reliable shut-off or switching functions. The upper and lower trunnion bearings enhance the resistance of the trunnions against seizure, and increase the valve life in extreme applications. The compact and rugged design employs spring-loaded seats for high cycle life and low operating torques at pressures up to 10,000 psig (689 bar).
Features
- PEEK trunnion bearings for longer cycle life.
- Two-way and Three-way designs.
- Blow-out resistant two-piece ball/stem.
- Low operating torque.
- Panel mountable to 9.7mm thickness.
- Handle indicates direction of flow.
- Positive handle stops.
- 100% factory tested.
- Compact, maximum flow design.
