Superlok | SKU:
SHBNV-F4N-SS

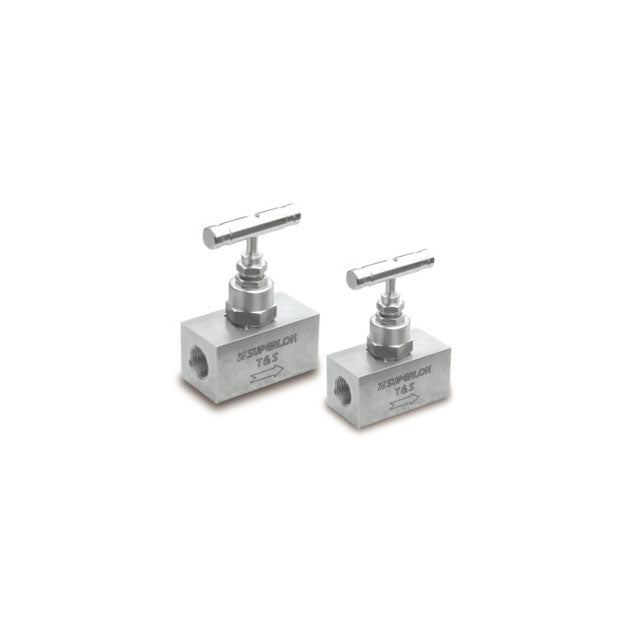

SHBNV High Pressure Bar Stock Needle Valves
$173.74 USD
Unit price
/
Unavailable
SHBNV High Pressure Bar Stock Needle Valves - SBNV, integral bonnet bar stock needle valve, SS, 10000psi, PTFE packing, bar handle, 1/4" FNPT ends is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Can't Find What You're Looking For? Contact Us Here
SHBNV High Pressure Bar Stock Needle Valves
From
$173.74 USD
Unit price
/
Unavailable
Description
Description
SHBNV Series
Features
- Bar stock body
- Compact design
- Low operating torques
- Variety of end connections available
- Straight and Angle flow patterns
- Every valve is factory tested
Testing
- Each Valve is tested with nitrogen at 1000psig(69bar) to maximum allowable leak rate of 0.1 SCCM.
- Hydrostatic shell test is porformed at 1.5 times of the working pressure. (OPTION)
Specifications
Specifications
-
CategoryValves
-
Sub-CategoryNeedle Valves
-
Product TypeBar Stock
-
Fitting ShapeStraight
-
MaterialStainless Steel
-
SeriesSHBNV
-
Orifice0.197", (5.0mm)
-
Pressure Rating4000 psig @ 500 F , 276 bar @ 260 C
-
Temperature Rating-65 F to 450 F , (-54 C to 232 C)
-
Data Sheet
