Stainless steel braided hose is widely used in industrial fluid and gas systems where flexibility, durability, and pressure resistance are critical. From hydraulic equipment to chemical processing and high temperature applications, braided hose assemblies provide reliable performance in environments where rigid piping is not practical.

This guide explains what stainless steel braided hose is, how it works, common applications, sizing considerations, pressure ratings, and how to select the right hose assembly for your system.

What Is a Stainless Steel Braided Hose

A stainless steel braided hose consists of a flexible inner core reinforced with one or more layers of stainless steel wire braid. The braid adds strength, protects the inner hose, and allows the assembly to withstand high pressure, vibration, and movement.

The inner core is typically made from a flexible metal or PTFE material, while the outer braid is constructed from corrosion resistant stainless steel. Together, these components create a hose assembly that combines flexibility with high mechanical strength.

Stainless braided hose is commonly used where systems require movement, thermal expansion compensation, or vibration isolation.

Common Applications for Stainless Steel Braided Hose

Stainless steel braided hose is used across many industries due to its versatility and durability.

Typical applications include:

• Hydraulic and pneumatic systems
• Chemical transfer and processing lines
• High temperature fluid or gas service
• Fuel and oil transfer systems
• Industrial equipment with vibration or movement
• Tight routing where rigid pipe is not feasible

Because stainless braided hose resists corrosion and mechanical wear, it is often selected for demanding environments where safety and long service life are required.

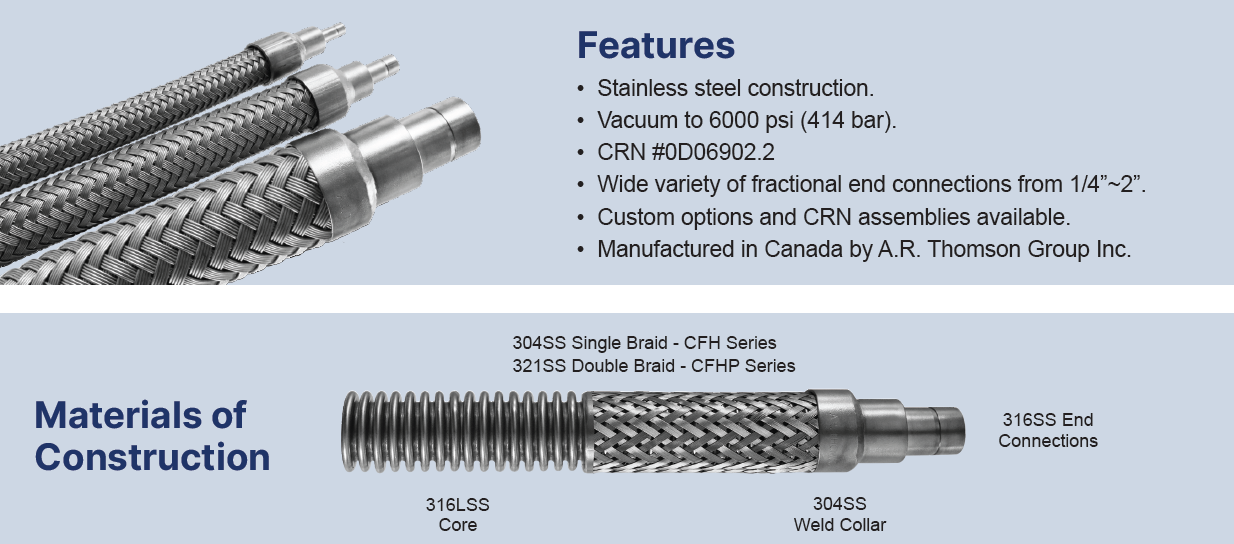

Stainless Steel Braided Hose Construction

Understanding hose construction helps ensure proper selection.

Most stainless braided hose assemblies include:

• An inner core that carries the fluid or gas
• One or more layers of stainless steel wire braid for reinforcement
• End fittings that connect the hose to the system

Single braid hoses are common for moderate pressure applications. Double braid hoses provide higher pressure ratings and increased resistance to external damage. The choice depends on system pressure, temperature, and mechanical demands.

How to Size a Stainless Steel Braided Hose

Proper sizing is critical for performance and safety.

• Key sizing factors include:
• Inside diameter to support required flow rate
• Overall hose length to avoid tension or compression
• Minimum bend radius to prevent damage
• End connection sizes and types

Selecting a hose that is too small can restrict flow and increase pressure loss. Selecting a hose that is too short can introduce stress, leading to premature failure.

Always allow enough length for movement, vibration, and thermal expansion.

Understanding Pressure Ratings

Stainless steel braided hose assemblies are rated for pressure, but it is important to understand the difference between ratings.

Working pressure is the maximum pressure the hose should experience during normal operation.
Burst pressure is the pressure at which the hose will fail.

Hoses should always be selected based on working pressure with an appropriate safety factor. Temperature also affects pressure ratings. Higher temperatures reduce allowable pressure, so this must be considered during selection.

Choosing the Right End Fittings

End fittings are just as important as the hose itself.

Common fitting types include:

• NPT threaded connections
• JIC fittings
• Compression fittings
• Flanged connections

The correct fitting depends on system standards, pressure requirements, and compatibility with existing components. Using the wrong fitting can cause leaks, improper sealing, or mechanical failure.

Installation Best Practices

Proper installation extends hose life and improves system reliability.

Best practices include:

• Avoid twisting the hose during installation
• Do not exceed minimum bend radius
• Ensure proper alignment of fittings
• Protect the braid from abrasion
• Allow slack for movement and vibration

Incorrect installation is one of the most common causes of braided hose failure.

Common Problems and How to Avoid Them

Some common issues seen in stainless steel braided hose assemblies include

• Leaks at fittings due to misalignment or improper torque
• Abrasion damage from contact with nearby components
• Premature failure caused by over bending or tension
• Pressure spikes exceeding hose rating

These issues can often be avoided by proper sizing, correct installation, and selecting the appropriate hose construction for the application.

How to Choose the Right Stainless Steel Braided Hose

When selecting a hose assembly, consider the following:

• Fluid or gas type
• Operating pressure and temperature
• Required flexibility and movement
• Connection types
• Environmental exposure

A properly selected stainless braided hose improves system safety, reduces maintenance, and extends service life.
